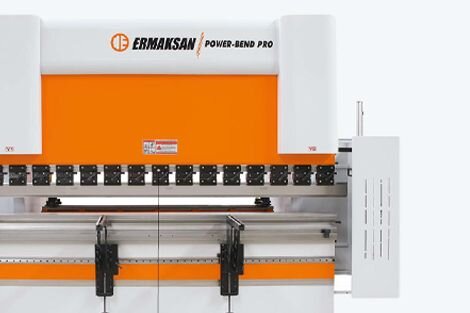

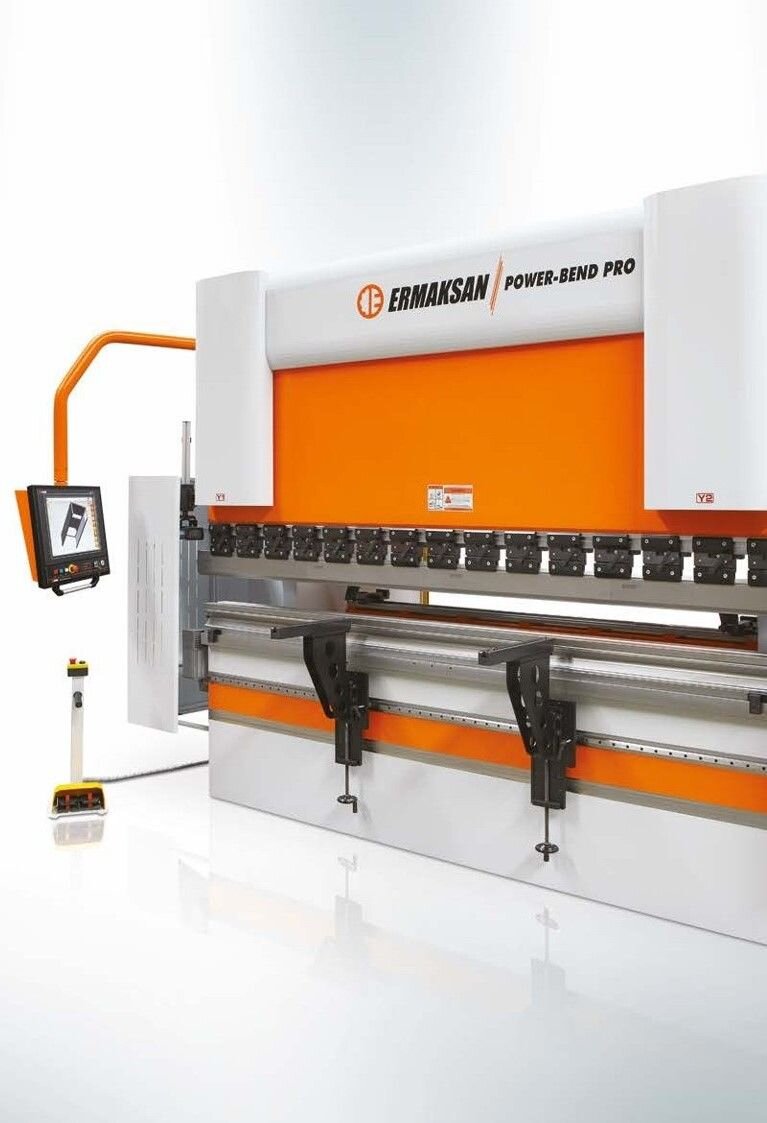

FERRIC-ERMAK Speed Bend 3760 x 220
7 Axes Synchronized Hydraulic Press Brake
If your aim is to provide important improvements in quality, productivity, esthetic and security aspects, the FERRIC Speed Bend series is what you are looking for.
Speed Bend series are developed to work with a wide range and variety of customer products and significantly increases the productivity due to the short set up times.
Maximum accuracy with the beam is achieved by means of an electrohydraulic synchronized control (Yl-Y2), consisting out of linear scales and hydraulic proportional valves, guaranteeing bending angles with maximum precision, together with a 4 axes heavy duty precise back gauge (X-R-Z l-Z2) and CNC controlled crowning table User friendly angle programming with the ER 99 2D-3D ( incl. off line software ) makes this machine a must for every fabricating shop.
Contact your steel cutting experts at Amber Steel to bring your project to life! Call us to discuss your laser cutting project, or email us with the details of your design.
Mono block, welded steel frames, rigid to deflection movement and high tensile with ST 44 A 1 material.
7 axes: Y l-Y2-X-R-Z l-Z2- CNC crowning
Synchronization accuracy of the beam+/- 0,001" by means of linear encoders and hydraulic proportional valves.
Heavy Duty 4 axis AC motorized back gauge system on ball screws ( X-R-Z l -Z2)
Electrical cabinet fan, compliant with the CSA standards.
Double acting foot pedal control
Throat depth 16.1" (410 mm).
Top tool clamping for European & N .A. style tool.
Quick release from the top tool.
CNC controlled crowning table
Laser type light guard Category 4
Sliding front support with T slot movable along the length of the bed.
N.A. style top tool tip hardened top tool
Multi V die in sections
Back and side guarding with inter-lock switches to the machine controls.
Full covering of the piston stroke to avoid damage.
Ergonomic mounted CNC control.

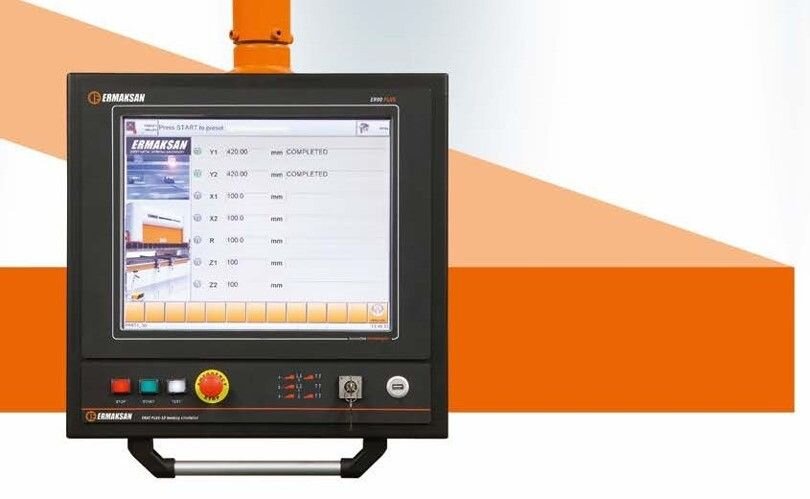

ERMAKSAN ER99 3D Bending simulation
With the upgraded model; we have the following new features:
There are new technologies such as auto tool selection from tool library
Easier user interface: Software is updated for easier command and confusing menu icons are removed
New design with no keyboard and better touch screen (there are still USB slots for exlernol Keyboard ond/or mouse)
Better hardware; processor, ram, graphics. etc
Compact and lighter
No hard drive but solid slate CF cards
Bug fixes, blue screen errors, etc
In addition to its current specifications of:
Windows-slyle operating system
2D and 3D programming
3D drawing feature
2D DXF Import feature.
Automatic bending sequence search and collision control
17" louch-screen that allows user to view machine body, mould, back gauge, side protection guards, and components.
Changeable colour display unit (buttons, machine colour, background colour, colour pallerns, the background)
Multi-funclional alpha numeric keyboard
External attachment of keyboard and mouse possible
Angle measurement and conlrol lhrough IMG 100 system
Enabling Tandem type operational applicalion
Dynamic crowning
Remote access
Application of digital protractor
Motorized front-support system
Configuration for up to 16 axes
Error message display
Inch / mm, t / us tons unit alterations
